Bulky Waste Furniture Crushing & Sorting processing system
With the impvorment of the living standards, more and more
discharged garbages. Bulky waste furniture mainly is sofa,
mattress, wood table, desk, chair, dorr, office furniture, waste
quilt, discharged bicycle, decoration materials, etc. These kinds
of garbage is large volum light weight, high transportation ocst,
inconvenient for transportion and handling, hamper public
transport, pollute the environment seriously, so has brought great
trouble to the urban construction and manament.
These bulky waste furniture would reduce the volumn, increase the
density, save the transportation charge. And the bulky waste
furniture is composition is wood, metal, sponge, foam, fiber,
textiles, etc which with high recycling value. So it is very
important to crush and recycling use them.
United Tech take the “ crush, reduce, sort, transport, recycling”
as the principle, and prodcue the processing system according to
the exact condition and the final purpose. United Tech Machinery,
one professional crushing expert to meet your requirements to the
CUSTOMIZED SHREDDER.

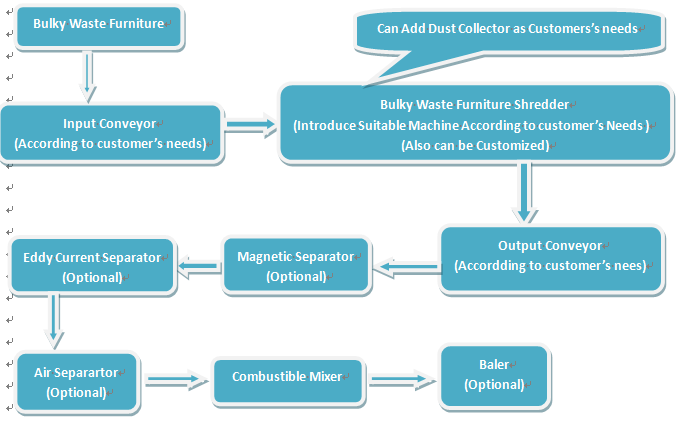

Bulky waste furniture processing diagram:
Description:
This processing diagram is used for the bulky waste furniture
crushing and sorting. It can be adjusted according to customers’
actual condition.
The bulky waste furniture is shredded by the coarse shredder, the
ouput size is less than 300mm..After shredding, sort out the metals
like iron, steel, copper, alumina, etc, wood, textiles, sponge
(foam, rubber), etc.
Features:
The bulky waste furniture system is totally enclosed design,
including crushing, dedust, sorting, etc.
The core shredder with the welding alloy steel, strong wear
resistance, decrease the maintaince cost.
The blade is detachable design, spiral arragement, easier to catch
the materials to crush.
Brand plate speed reducer, low speed, large torque.
| Model | D40120 | D40150 | D40180 | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 825×1200 | 825×1500 | 825×1800 | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 400 | 400 | 400 | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 30 | 30 | 45 | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 40 | 50 | 40 | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 37+37 | 45+45 | 55+55 | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 8000 | 10000 | 12000 | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
