Waste Plastic Film Crushing, Washing, Pelletizing & Recycling
Processing System
Plastic is widely used in the agricultural, industry,
constructioin, package, also the life field. Take a example as in
the agriculture, mulching film, greehouse film, post consumer
filem, manufacture paxking film, pipe, fishing wet, etc. We are
using much more plastic in our life, like the rain coat, tooth
brush, plastic bag, etc.

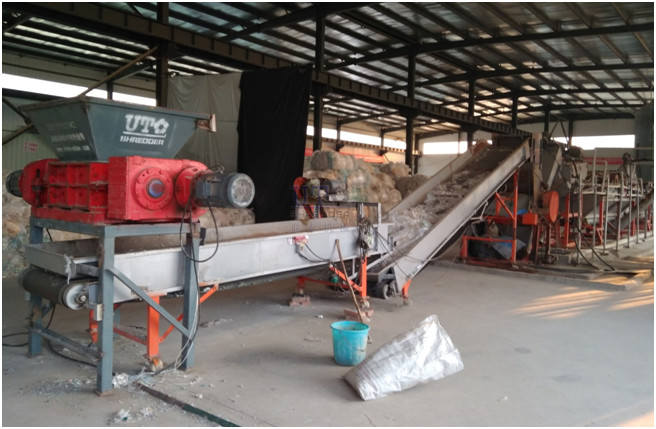

The plastic film crushing, wahsing, pelletizing & recycling
processing line from United Tech is used for processing a wide
range of plastic materials whith varying level of contamination
inculding extremely heavy contamination such as oil based
substances and agricultural waste, industral packing film, waste
film, PET bottle, ect. This whole line including shredding,
washing, sorting, drying, pelletizing, etc. The waste material
change to recycling materials. This recycling line is simple
operation, high efficient and low energy consumption. We can
cutomized the recycling line as the customers’ requirements as the
produciton capacity from 300kgs to 2000kgs/hour.
United Tech take the “ crushing, washing, drying, pelletizing,
recycling” as the principle, and prodcue the processing system
according to the exact condition and the final purpose. United Tech
Machinery, one professional crushing expert to meet your
requirements to the CUSTOMIZED SHREDDER.

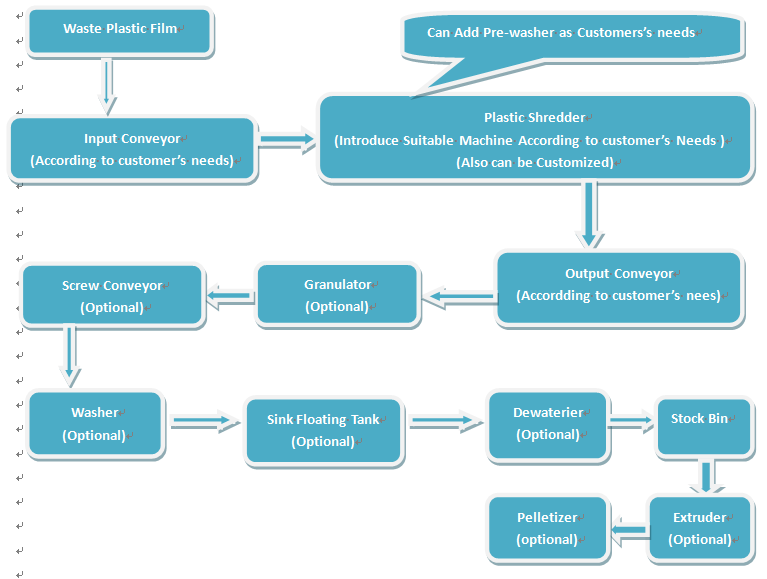

Waste Plasitc Film Recycling Processing Diagram:
Description:
This processing diagram is used for the waste plastic film
shredding, washing, dewatering and pelletzing.. It can be adjusted
according to customers’ actual condition.
This system with the different output capacity as customers’s
requirements. Please contact with us sales person for exact
specificaiton.
The double shaft shredder allows the processing of a wide variety
of materials, dimensions and densities, being also suitable for the
reduction of bulky products. It is equipped with a large hopper and two shafts, which support
the cutting discs, being driven by two independent gear motors. The
cutting discs are manufactured in high quality steel and wear
resistant. The reduced speed of rotation allows low energy
consumption and noise level, keeping high productions. The shredder is equipped with an automatic
inversion system, powered in case of lock and resumption of
movement in order to ensure the continuity of production. As an
option, an upper ram can be mounted for processing of bulky parts
(bumpers, containers, etc.).
| Model | D32100 | D35120 | D35150 | D40150 | D40180 | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 650×1000 | 680×1200 | 680×1500 | 825×1500 | 825×1800 | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 320 | 350 | 350 | 400 | 400 | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 25 | 30 | 38 | 30 | 45 | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 40 | 40 | 40 | 50 | 40 | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 18.5+18.5 | 22+22 | 22+22 | 45+45 | 55+55 | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 5200 | 6000 | 6500 | 10000 | 12000 | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
