Granulator Introduction:
Granulator is one crusher which high speed, multi blade head, wear
rotor, variety of cutter body structure. Granulator in good
appearance, is welded by rigid steel structure, machine case half
-and -half opening, which makes convenience to clean, remove knives
and maintenance, blade roller is to be chosen by different crushing
material. Optional air conveying collecting units and sound-proofed
execution are at user’s request.
Granulator in good appearance, is welded by rigid steel structure,
machine case half -and -half opening, which makes convenience to
clean, remove knives and maintenance, blade roller is to be chosen
by different crushing material. Optional air conveying collecting
units and sound-proofed execution are at user’s request.

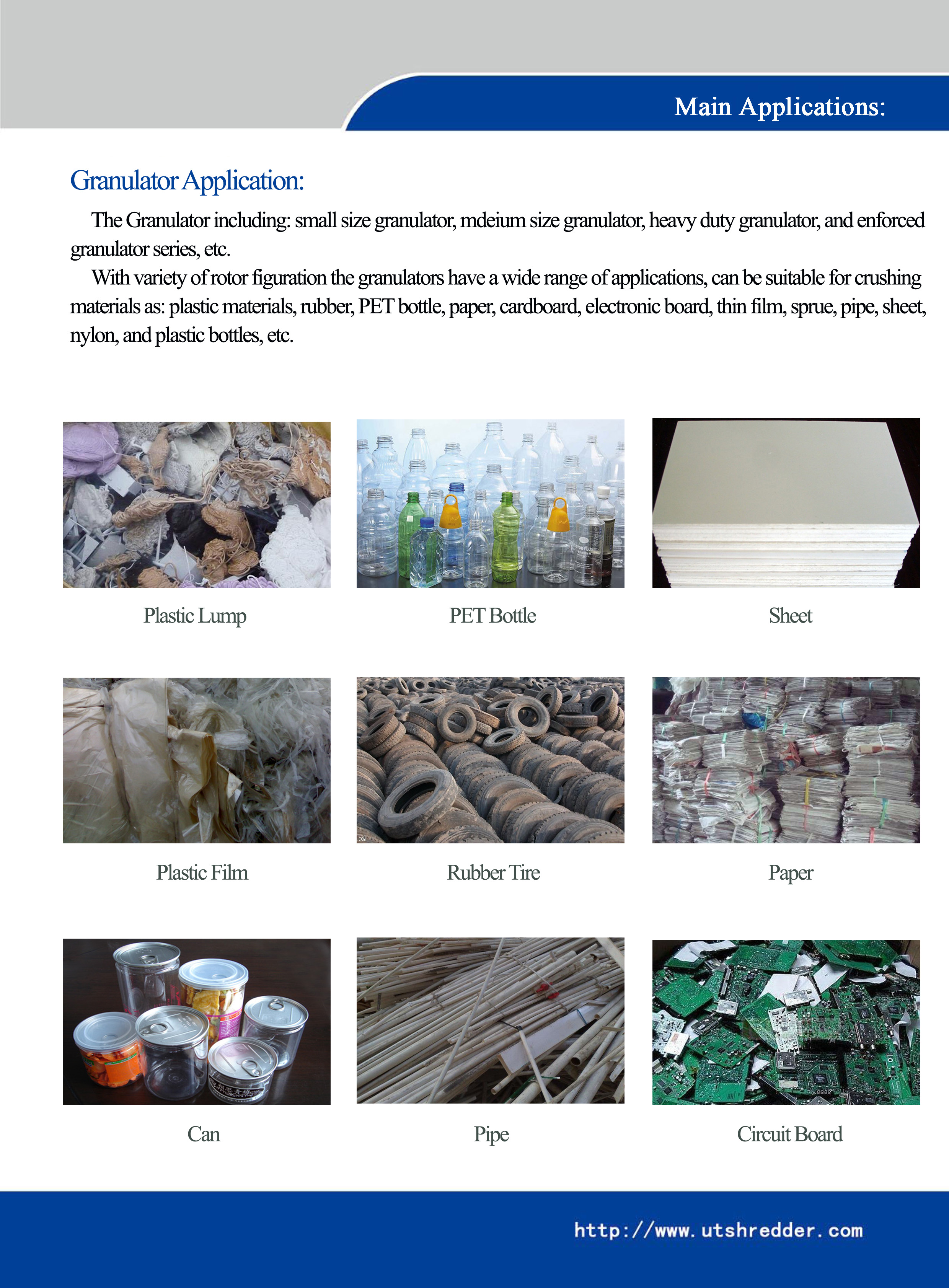

Suitable for crushing materials as: plastic materials, rubber, PET
bottle, paper, cardboard, electronic board, thin film, sprue, pipe,
sheet, nylon, and plastic bottles, etc.These Granulator are economical, practical, simple operation,
durable and so on.
| Model (mm) | G3260 |
| Overall Size L/W/H(mm) | 1486*1446*1786 |
| Rotor Blade Diameter(mm) | 320 |
| Roller Length(mm) | 600 |
| Rotor Rotate Speed (r/min) | 592 |
| Screen Mesh(mm) | 12 |
| Rotor Blade Quantity (PCS) | 3*2 |
| Counter Quantity(PCS) | 1*1 |
| Rotor Motor Powder(KW) | 15 |
| Net Weight(KG) | 1470 |
Note:
1. The voltage about the power supply can be selected by the
customer’s specific requirements.
2. The granulator capacity can be influenced by the material
compostion and output size.
Zibo United Tech Machinery Co., Ltd.
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the
factory.
How about the shipping and package?
1. we arrange shipment usually according to your special
requirements.
2. Usually plywood package. Or according to clients's requirements.
How to get a suitable machine?
1. what is the raw material
2. the dimension of the input material and outpout material
3. the capacity,and power condition.
Tell me those data, we can help you choose the Waste type Shredder
for you.
Please feel free to contact me any time with any questions.
We are waiting for you!
Our service:
(1) Your inquiry related to our products or prices will be replied
in 12hours.
(2) Our engineer will make machine placement chart according to
client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of
loading. All products are passed strict test.
