Double shaft shredder also known as shear type shredder , shredder and through shear ,
extrusion can reduce the material size. The shreddering machine
widely used in the waste plastic , waste rubber , wood and other
waste.
Our company Zibo United Tech Machinery Co., ltd. has the technology
which is more mature and more advanced design of biaxial crusher
series, volume reduction processing provides reliable quality
equipment for pre crushing, utilization of waste recycling in
china.
1. The machine is suitable to process very big size of plastic
material, such as plastic pipe, plastic board, wood, woven bags,
tire, aluminum cans, little diameter of copper wire and pressing
plastic film which the single shaft plastic shredder can not
process, new designed especially for crushing the film in rolls,
hollow barrels and so on.
2. The machine with big feeding mouth, it can put the big plastic
product freely.
3. The rotary blade and cutting blade and blade edge with special
design, it can get very high efficiency and high capacity
4. The machine is control by PLC system, . The knife can rotated in
opposite direction, and also can close automatic if something
unexpected happen, with very high safety service
5. The machine running slowly with low noise and low dust
6. The knife material is high quality tool steel, with long
lifetime.
The application of the shredding machine generally includes:
1, Waste plastic bucket, plastic bottle, waste pipe, thin film, etc
;
2, Rubber, old tires, conveying belt, waste shoes, etc;
3, Old furniture, television, computer, wood, paper, cloth,
leather, etc.
4, Steel, waste steel wire, color steel plate, paint buckets, cans,
waste metal, etc.
5, Wood, waste wood pallet, plank, waste wood floor, wood packing
case.
6, Waste cloth, fabric, carpet, medical waste, gauze, bandage etc.
We - Zibo United Tech Machinery Co., Ltd. Is specialize in this shredder & crusher and environment-protection field many year. with best quality,
best service and competitive price,
More service we can provide:
1. Customize & OEM is available.
2. Consumable parts for free distribution.
3. Our engineer are available to service oversea.
4. Professional Free Design
5. Respect clients; Devote ourselves to improving the total value
6. 12 months warranty

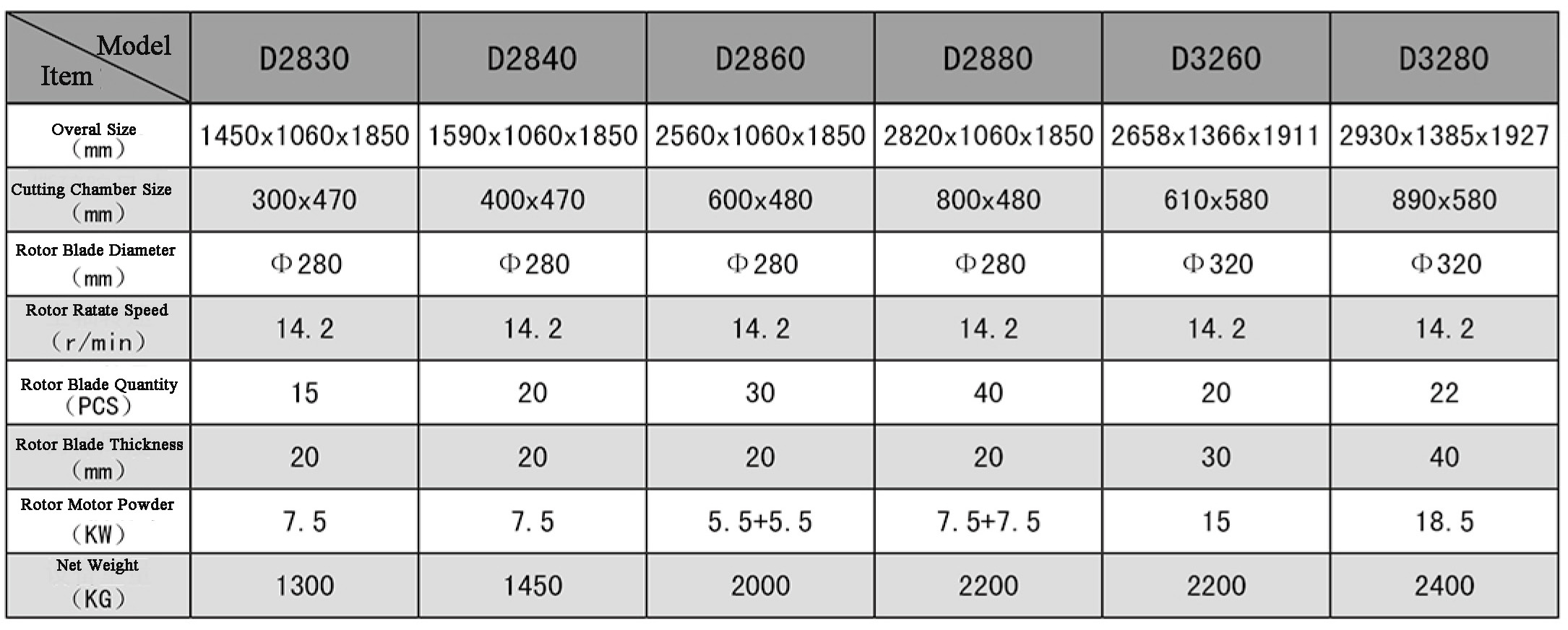

| Model | D2830 | D2840 | D2860 | D2880 | D3260 |
| dimension L/W/H(mm) | 1450x1060x1850 | 1590x1060x1850 | 2560x1060x1850 | 2820x1060x1850 | 2658x1366x1911 |
| Cutting Chamber size C/D(mm) | 300x470 | 400x470 | 600x480 | 800x480 | 610x580 |
| Rotor Blade Diameter(mm) | Φ280 | Φ280 | Φ280 | Φ280 | Φ320 |
| Rotor Ratate Speed (r/min) | 14.2 | 14.2 | 14.2 | 14.2 | 14.8 |
| Rotor Blade Quantity (PCS) | 15 | 20 | 20 | 20 | 15 |
| Rotor Blade Thickness(mm) | 20 | 20 | 30 | 40 | 40 |
| Rotor Motor Power(KW) | 7.5 | 5.5+5.5 | 7.5+7.5 | 11+11 | 15+15 |
| | | | | |
| Model | D3280 | D32100 | D32120 | D42100 | |
| dimension L/W/H(mm) | 2930x1385x1927 | 2930x1385x1927 | 3416x1946x2275 | 3275x1946x2275 | |
| Cutting Chamber size C/D(mm) | 890x580 | 1020x580 | 1213x736 | 1052x736 | |
| Rotor Blade Diameter(mm) | Φ320 | Φ320 | Φ320 | Φ430 | |
| Rotor Ratate Speed (r/min) | 14.8 | 14.8 | 14.8 | 9.2 | |
| Rotor Blade Quantity (PCS) | 22 | 25 | 30 | 20 | |
| Rotor Blade Thickness(mm) | 40 | 40 | 40 | 50 | |
| Rotor Motor Power(KW) | 18.5+18.5 | 22+22 | 30+30 | 30+30 | |
| | | | | |
| Model | D42120 | D42150 | D52120 | D52160 | |
| dimension L/W/H(mm) | 3416x1946x2275 | 3716x2234x2670 | 3716x2234x2670 | 4016x2234x2670 | |
| Cutting Chamber size C/D(mm) | 1213x736 | 1224x948 | 1224x948 | 1624x948 | |
| Rotor Blade Diameter(mm) | Φ430 | Φ516 | Φ516 | Φ516 | |
| Rotor Ratate Speed (r/min) | 8.2 | 8.2 | 9.2 | 9.21875 | |
| Rotor Blade Quantity (PCS) | 24 | 30 | 20 | 20+10 | |
| Rotor Blade Thickness(mm) | 50 | 50 | 60 | 60+40 | |
| Rotor Motor Power(KW) | 37+37 | 45+45 | 45+45 | 55+55 | |
Note:
1. The voltage about the power supply can be selected by the
customer’s specific requirements.
2. The shredder capacity can be influenced by the material
compostion and output size.
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the
factory.
How about the shipping and package?
1. we arrange shipment usually according to your special
requirements.
2. usually wooden case or plywood package.
How to get a suitable machine?
1. what is the raw material
2. the dimension of the input material and outpout material
3. the capacity,and power condition.
Tell me those data, we can help you choose the Waste type Shredder
for you.
Please feel free to contact me any time with any question
We are waiting for you!
