Single Shaft Shredder S40100
Single Shaft Shredder Introduction:Single shaft shredder is available to recycle wide range of
material. It is an ideal machine for plastic, paper, wood, fiber,
rubber, organic waste a wide variety of non-metallic materials. As
per our customer’s requirements, such as the input size of
materials. Capacity and the final output size etc. We could work
out a suitable proposal for our clients. After being shredder by
the machine, the output material could be used directly or go int
to the next step of size reduction.
With the function of Siemens microcomputer control system, it is
possible to control automatically start, stop. Automatic reverse
sensors to protect the machine against over loading and jamming.
The output capability typically range between 300kg/hr -5,000kg/hr+
depending on the different model and different materials.
Single Shaft Shredder in Zibo United Tech Machinery Co., Ltd.
Application:
Plastic: Film; Jumbo Bag; PET Bottle; Plastic Barriers; Plastic
Pipe; Plastic Boards
Hard Plastic: Plastic Lump (Purgings); Fiber, High Strength
Engineering Plastics ( ABS, PC, PPS, etc.)
Wood:
Timber; Tree Root; Wood Pallets; Wood Package, etc.
Industrial Solid Waste:
Cable; Light Metal, like Aluminum Can, Aluminum Scrap, etc. White
Goods, like TV Shell, Washing Machine Shell, Refrigerator Body
Shell, Computer Shell, Circuit Board, etc. Solid Waste, like
Household Garbage, Medicinal Waste, Industrial Waste, etc.
Others: Rubber, Textile, Fiber & Glass Products,Paper: etc

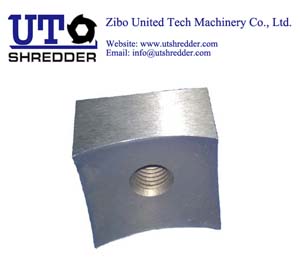

| Model Item(mm) | S40100 | | dimension L/W/H(mm) | 2825*2004*1875 | | Cutting Chamber Size(mm) | 1400*1000 | | RAM(mm) | 1000 | | Rotor Blade Diameter(mm) | 390 | | Rotor Ratate Speed (r/min) | 80 | | Rotor Blade Size(mm) | 46*46*30 | | Rotor Blade Quantity (PCS) | 54+4 | | Counter Quantity(PCS) | 25 | | Rotor Motor Powder(KW) | 45 | | Material Return Power(KW) | 5.5 | | Net Weight(KG) | 4000 |
|
|
|
Single Shaft Shredder Advantage:
* Detachable Rotor Blade, easy disassemble and installation, and
simple maintenance.
* Automatic Feeder, increase produce efficiency.
* Equipment passed the CE, meet the Europe Safety Standard.
* Quick change Screen for accurate particle size control.
* Shock Absorbing Gearbox reduces stress on Drive components.
* Integrated Rotor, assured the cutter clearance between the Rotor
Blade and the Counter Blade.
* Enclosed Bearing protection design, waterproof and dustproof,
extend the bearing work life.
* PLC Control System, automatic reverse sensor to protect the
machine against over loading and jamming.
* Provide the Rotor Cooler System against the low melting
materials, prevent the materials burning while the temperature
higher.
