rubber friction cord Shredder Functions:
The effective rotor-stator cutting principle with sieve below for
defining the size of material flakes. Zibo United Tech Machinery

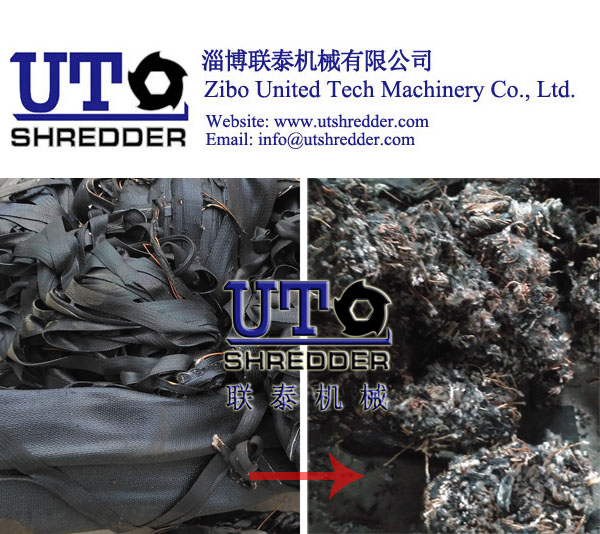

Co., Ltd. - The leather shredder can shred the rubber friction cord
into smaller pieces.
Rubber friction cord Shredder Applications:
Applications: friction cord, tire cord fabric, rubber fabric,
impregnated fabric, textile, waste cloth and waste yarn, waste
cotton clothing, cotton, chemical fiber, flax, leather, plastic
film, paper, trademark, non-woven fabric, etc.
Zibo United Tech Machinery Co., Ltd.
friction cord Shredder Features:
1. Sturdy, Wear-resistant, Reliable
2. Renewable Cutters with Harden Alloy Steel
3. High Capacity, Lower Price
4. High Efficiency, Lower Noise
Double shaft shredder have been designed for a wide array of applications and
industries, suitable for shredding solid material such as E-waste,
metal, wood, plastic, scrap tires, packaging barrel. Pallets, etc.
And particularly well suited to the size reduction of bulky or
voluminous materials which could include contamination such as
metals or stones. Depending on input material and the following
process the shredded material can be used directly or go into the
next step of size reduction. It can efficient to increase the bulk
density and decrease the transportation cost. It is widely used in
industry waste recycling, medical recycling, electronic recycling,
pallet recycling, municipal solid waste recycling, plastic
recycling, tire recycling, paper making industry, etc.
Double Shaft Shredder has two rotors built into the machine that rotate at low speeds,
high torque and low noise. With the function of Siemens
microcomputer control system, it is possible to control
automatically start, stop. Automatic reverse sensors to protect the
machine against over loading and jamming.
| Mode | D2830 | D2840 | D2860 | D2880 |
| dimension L/W/H(mm) | 1450x1060x1850 | 1590x1060x1850 | 2560x1060x1850 | 2820x1060x1850 |
| Cutting Chamber size C/D(mm) | 300x470 | 400x470 | 600x480 | 800x480 |
| Rotor Blade Diameter(mm) | Φ280 | Φ280 | Φ280 | Φ280 |
| Rotor Ratate Speed (r/min) | 14.2 | 14.2 | 14.2 | 14.2 |
| Rotor Blade Quantity (PCS) | 15 | 20 | 30 | 40 |
| Rotor Blade Thickness(mm) | 20 | 20 | 20 | 20 |
| Rotor Motor Powder(KW) | 7.5 | 7.5 | 5.5+5.5 | 7.5+7.5 |
| Net Weight(KG) | 1300 | 1450 | 2000 | 2200 |
| | | | |
| Model | D3260 | D3280 | D4280 | D42100 |
| dimension L/W/H(mm) | 2658x1366x1911 | 2930x1385x1927 | 2940x1816x2270 | 3275x1946x2275 |
| Cutting Chamber size C/D(mm) | 610x580 | 890x580 | 890x736 | 1052x736 |
| Rotor Blade Diameter(mm) | Φ320 | Φ320 | Φ430 | Φ430 |
| Rotor Ratate Speed (r/min) | 14.2 | 14.2 | 14.8 | 14.8 |
| Rotor Blade Quantity (PCS) | 20 | 22 | 22 | 26 |
| Rotor Blade Thickness(mm) | 30 | 40 | 40 | 40 |
| Rotor Motor Powder(KW) | 15 | 18.5 | 15+15 | 18.5+18.5 |
| Net Weight(KG) | 2200 | 2400 | 3700 | 4100 |
| | | | |
| Model | D42120 | D52100 | D52130 | D52160 |
| dimension L/W/H(mm) | 3416x1946x2275 | 3334x1866x2670 | 3716x2234x2670 | 4016x2234x2670 |
| Cutting Chamber size C/D(mm) | 1213x736 | 984x948 | 1324x948 | 1624x948 |
| Rotor Blade Diameter(mm) | Φ430 | Φ514 | Φ514 | Φ514 |
| Rotor Ratate Speed (r/min) | 14.8 | 11.8 | 11.8 | 11.8 |
| Rotor Blade Quantity (PCS) | 30 | 20 | 26 | 32 |
| Rotor Blade Thickness(mm) | 40 | 50 | 50 | 50 |
| Rotor Motor Powder(KW) | 22+22 | 30+30 | 37+37 | 45+45 |
| Net Weight(KG) | 4500 | 6500 | 8700 | 9200 |
Note:
1. The voltage about the power supply can be selected by the
customer’s specific requirements.
2. The shredder capacity can be influenced by the material
compostion and output size.
Zibo United Tech Machinery Co., Ltd.
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the
factory.
How about the shipping and package?
1. we arrange shipment usually according to your special
requirements.
2. Usually plywood package. Or according to clients's requirements.
How to get a suitable machine?
1. what is the raw material
2. the dimension of the input material and outpout material
3. the capacity,and power condition.
Tell me those data, we can help you choose the Waste type Shredder
for you.
Please feel free to contact me any time with any questions.
We are waiting for you!
Our service:
(1) Your inquiry related to our products or prices will be replied
in 12hours.
(2) Our engineer will make machine placement chart according to
client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of
loading. All products are passed strict test.
