Waste Wool Shredder & Recycling Processing System

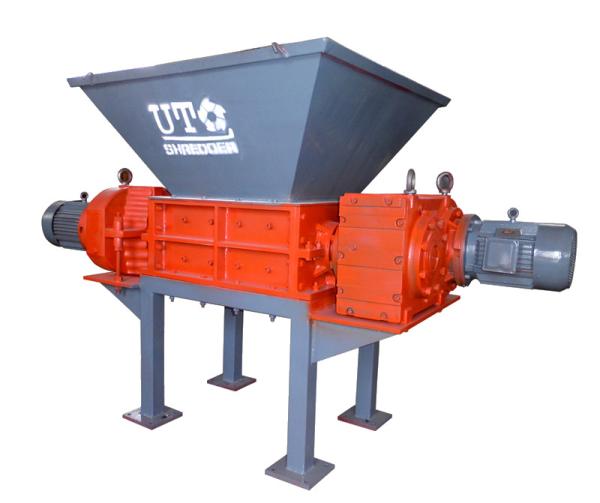

Double shaft shredder also known as shear type shredder , shredder
and through shear , extrusion can reduce the material size. The
shreddering machine widely used in the animal carcasswaste, plastic
, waste rubber , wood and other waste.
Zibo United Tech Machinery Co., Ltd. has the technology which is
more mature and more advanced design of biaxial crusher series,
volume reduction processing provides reliable quality equipment for
pre crushing, utilization of waste recycling in china.
1. The machine with big feeding mouth, it can put the big plastic
product freely.
2. The rotary blade and cutting blade and blade edge with special
design, it can get very high efficiency and high capacity
3. The machine is control by PLC system, . The knife can rotated in
opposite direction, and also can close automatic if something
unexpected happen, with very high safety service
4. The machine running slowly with low noise and low dust
5. The knife material is high quality tool steel, with long
lifetime.
We specialize in this crusher and environment-protection field many
year. with best quality, best service and competitive price,
More service we can provide:
1. Customize & OEM is available.
2. Consumable parts for free distribution.
3. Our engineer are available to service oversea.
4. Professional Free Design
5. Respect clients; Devote ourselves to improving the total value
6. 12 months warranty
What about the quality of your products?
1. we have a special training for each worker.
2. we use China famous brand spare parts to cast the machine.
3. have a trial test run before delivery the machine out of the
factory.
How about the shipping and package?
1. we arrange shipment usually according to your special
requirements.
2. usually wooden case or plywood package.
How to get a suitable machine?
1. what is the raw material
2. the dimension of the input material and outpout material
3. the capacity,and power condition.
Tell me those data, we can help you choose the Waste type Shredder
for you.
Please feel free to contact me any time with any question
We are waiting for you!
| Model | D2012 | D1630 | D2040 | D2850 | D2860 | D2880 | D2890 | | |
| Cutting Chamber size C/D (mm) | 435×130 | 325×300 | 435×400 | 580×500 | 580×600 | 580×800 | 580×900 | | |
| Rotor Blade Diameter (mm) | 200 | 160 | 200 | 285 | 285 | 285 | 285 | | |
| Rotor Ratate Speed (r/min) | 5-10 | 10-20 | 10-20 | 10-20 | 10-21 | 10-20 | 10-20 | | |
| Rotor Blade Quantity (PCS) | 3 | 20 | 20 | 20 | 20 | 26 | 30 | | |
| Rotor Blade Thickness (mm) | 40 | 15 | 20 | 25 | 30 | 30 | 30 | | |
| Rotor Motor Power (KW) | 1.5+1.5/3 | 3+3/5.5 | 4+4/7.5 | 5.5+5.5/11 | 7.5+7.5/15 | 11+11/22 | 15+15/30 | | |
| Net Weight (kgs) | 800 | 1000 | 1200 | 1650 | 1800 | 2500 | 2500 | | |
| Model | D3280 | D32100 | D35120 | D35150 | D35150 | D40100 | D40120 | D40150 | D40180 |
| Cutting Chamber size C/D (mm) | 650×800 | 650×1000 | 680×1200 | 680×1500 | 680×1500 | 825×1000 | 825×1200 | 825×1500 | 825×1800 |
| Rotor Blade Diameter (mm) | 320 | 320 | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 20 | 25 | 30 | 38 | 38 | 20 | 24 | 30 | 36 |
| Rotor Blade Thickness (mm) | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 |
| Rotor Motor Power (KW) | 15+15/30 | 18.5+18.5/37 | 22+22 | 22+22 | 30+30 | 30+30 | 37+37 | 45+45 | 55+55 |
| Net Weight (kgs) | 4000 | 5200 | 6000 | 6500 | 7000 | 8000 | 8000 | 10000 | 12000 |
| Model | D43120 | D43150 | D43180 | D52120 | D52150 | D52180 | D62140 | D62180 | D62210 |
| Cutting Chamber size C/D (mm) | 900×1200 | 900×1500 | 900×1800 | 1100×1200 | 1100×1500 | 1100×1800 | 1300×1400 | 1300×1820 | 1300×2100 |
| Rotor Blade Diameter (mm) | 430 | 430 | 430 | 520 | 520 | 520 | 620 | 620 | 620 |
| Rotor Ratate Speed (r/min) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Rotor Blade Quantity (PCS) | 24 | 30 | 36 | 20 | 30 | 30 | 20 | 26 | 30 |
| Rotor Blade Thickness (mm) | 50 | 50 | 50 | 60 | 50 | 60 | 70 | 70 | 70 |
| Rotor Motor Power (KW) | 45+45 | 55+55 | 75+75 | 75+75 | 75+75 | 75+75 | 90+90 | 90+90 | 90+90 |
| Net Weight (kgs) | 8500 | 11000 | 13500 | 12000 | 14000 | 16000 | 15000 | 20000 | 24000 |
